| General Specifications | | |
| Directive Efficiency | 85% | |
| Pointing Accuracy | 0.005o rms | |
| Surface Accuracy | 0.012" rms | |
| Slew Rate AZ | 3o/sec | |
| Slew Rate EL | 0.7o/sec | |
| Acceleration Rate | 2o/sec2 | |
| Control Panel Servo System | includes speed and position loops | |
| Encoders | 26 bit | |
| Interface | Ethernet or RS 485 | |
| Typical RF Specifications | | |
| Geometry | Dual Shaped Cassegrain, Sub Reflector Subtended angle 100o |
| Feed Options | C, X, Ku, Ka band | |
| Optimization | High Efficiency Shaped Cassegrain | |
| Mechanical Specifications | | |

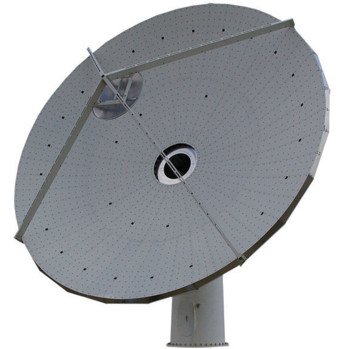

| Antenna Diameter | 12m | |
| Antenna Type | Cassegrain | |
| Elevation Travel | 5°-90° | |
| Azimuth Travel | +/- 270° Continuous | |
| Drive System: Elevation | Ball Screw Actuator with redundant brake | |
| Drive System: Azimuth | Torque biased dual pinion drive | |
| Mount Type | Full Motion | |
| Mount material and finish | Steel, painted white | |
| Structure material and finish | Aluminium, painted white as required | |
| Reflector material and finish | Aluminium, painted white | |
| Environmental Specifications | Standard | Metric |
| Operational Winds | 35 mph, Drive to stow 50mph | 57 kph, Drive to stow 82 kph |
| Survival Winds | 100 mph at Stow | 163 kph at Stow |
| Ambient Temperature | Operational: +5° to +122°F | -15° to 50°C |
| Survival: -22° to +140°F | -30° to +60°C |
| Rain | Up to 4 in/h | 10 cm/h |
| Relative Humidity | 0% to 100% with condensation | |
| Solar Radiation | 360 BTU/h/ftІ | 1000 Kcal/h/mІ |
| Radial Ice (Survival) | 1 in all surfaces | 2.5 cm |
| Shock and Vibration | As occurred during shipment | |
| Corrosive Atmosphere | As encountered in coastal regions and/or heavily industrialized areas |
| Seismic (Survival) | 0.3 G’s Horizontal, 1.0 G’s vertical | |
