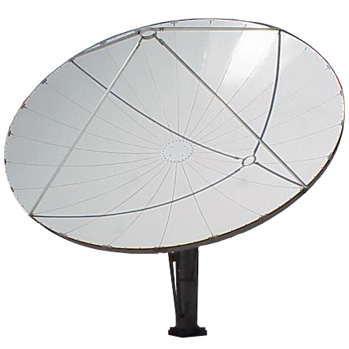

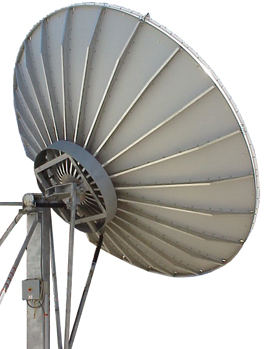

RF Specifications | C-Band | Ku-Band |
| Frequency | 3.7-4.2 GHz | 10.95-12.75 GHz |
| Antenna Gain | 44.6 dBi @ 4.0 GHz | 53.5 dBi @ 11.725 GHz |
| Gain at 3 dB Beamwidth | 1.1° | 0.4° |
| VSWR | 1.3:1 | 1.3:1 |
| Antenna Noise @ 30°EL | 25 K | 25 K |
| First Sidelobe Level | -20 dB (±0.5 dB) @ 4.0 GHz | -16.5 dB (±0.5 dB) @ 12.0 GHz |
| Feed Interface | CPR229F | WR75 |
| Mechanical Specifications | |
| F/D Ratio | .488 |
| Focal Distance | 96.1 in / 244 cm |
| Azimuth Travel | 132° Arc (Fixed)
116° Motorized |
| Elevation Travel | bottom mount: 6-60°
top mount: 25°-80° |
| Environmental Specifications | |
| Wind Load | Operational | 60 mph |
| | Survival | 125 mph |
| Temperature | Operational | -40° to 140°F
-40° to 60°C |
| | Survival | -60° to 180°F
-51° to 82°C |
| Radial Ice | Survival | 1 in or
1/2 in + 60mph |
| Shock & Vibration | As occurred during on shipment of air, truck or rail. |
