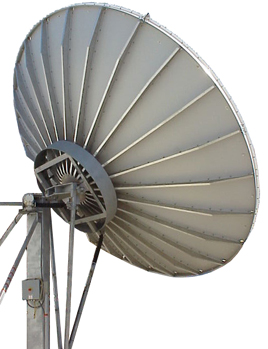

Спутниковая антенна Patriot 6.3 Meter C/Ku-Band прямофокусная система |
|---|
|
|
|
|
|
www.sepatriot.com
RF Specifications | C-Band | Ku-Band | | Frequency | 3.625-4.2 GHz | 10.95-12.75 GHz | | Antenna Gain | 46.4 dBi @ 4.0 GHz | 55.2 dBi @ 11.95 GHz | | Gain at 3 dB Beamwidth | 0.8° @ 4.0 GHz | 0.28° @ 11.95 GHz | | VSWR | 1.3:1 | 1.3:1 | | Antenna Noise @ 30°EL | 48K | 53 K | | First Sidelobe Level | -19 dB (±0.5 dB) @ 4.0 GHz | -16.5 dB (±0.5 dB) @ 12.0 GHz | | Feed Interface | CPR229F | WR75 | | Mechanical Specifications | | | F/D Ratio | .400 | | Focal Distance | 55.2 in / 140.3 cm | | Azimuth Travel | 120° | | Elevation Travel | bottom mount: 5-30°
top mount: 0-90° | | Environmental Specifications | | | Wind Load | Operational | 45 mph | | | Survival | 125 mph | | Temperature | Operational | 5° to 122°F
-15° to 50°C | | | Survival | -22° to 140°F
-30° to 60°C | | Radial Ice | Survival | 1 in or
1/2 in + 60mph | | Shock & Vibration | As occurred during on shipment of air, truck or rail. |
|
|
|
|
