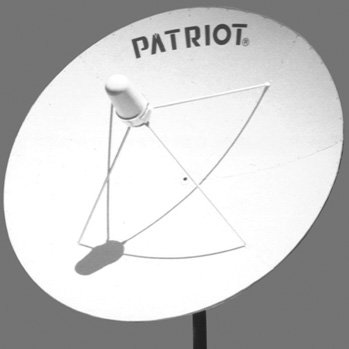

Спутниковая антенна Patriot 3.1 Meter C/Ku-Band прямофокусная система |
|---|
|
|
|
|
|
Specifications | C-Band | Ku-Band | | Frequency | 3.7-4.2 GHz | 10.95-12.75 GHz | | Rx Gain | 40.4 dBi | 49.7 dBi | | Rx 3 dB beamwidth | 1.7 | 0.6 | | Cross Polarization | >35 dB | >35 dB | | Beamwidth | 1.72° | .55° | | VSWR | 1.3:1 | 1.3:1 | | Antenna Noise @ 30°EL | 28 K | 34 K | | Typical G/T (Midband) | | | | with 50 K LNA | 20.9 dB/K | --- | | with 70 K LNA | --- | 29.6 dB/K | | Feed Interface | CPR229 | WR75 | Mechanical Specifications | Az-El Head | Polar | | f/D Ratio | .336 | .336 | | Focal Distance | 41.0 in | 41.0 in | | Azimuth Travel | 360° Continuous | 120° Arc | | Site Latitude | 0° to 90° | 10° to 60° | | Polarization Travel | ±90° | ±90° | | Mast Pipe Size Required | Az-El 5.5" O.D. | Polar 4" O.D.
Navigator 6.625" O.D. | | Total Weight | 385 lbs | 385 lbs | | Crate Dimensions | 68x48x19 in | 68x48x19 in | | Units per 40 ft Container | 96 units | 96 units | | | Navigator | | | F/D Ratio | .366 | | | Focal Distance | 41.0 in / 104.2 cm | | | Azimuth Travel | 120° Arc | | | Elevation Travel | 20° to 90° | | | Polarization Travel | ±90° | | | Total Weight | 590 lbs | | | Crate Dimensions | 68x48x19 in | 72x48x19 in | | Units per 40 ft Container | 72 units | | | Environmental Specifications | | | Wind Load | Operational | 60 mph | | | Survival | 125 mph | | Temperature | Operational | -40° to 140°F
-40° to 60°C | | | Survival | -60° to 180°F
-51° to 82°C | | Radial Ice | Survival | 1 in or
1/2 in + 60mph | | Shock & Vibration | As occurred during on shipment of air, truck or rail. |
Виды подвесок  |  |  | Ax-El Fixed
PRT-310AZ | Polar Mount
PRT-310PLR | Navigator
PRT-310NAV |
|
|
|
|
