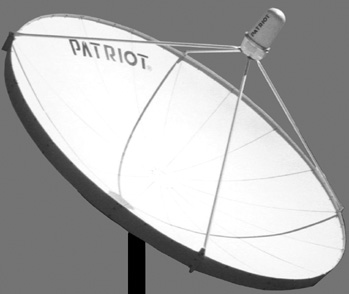

| RF Specifications | C-Band | Ku-Band |
| Frequency | 3.7-4.2 GHz | 10.95-12.75 GHz |
| Midband Gain | 41.5 dBi | 50.3 dBi |
| Cross Polarization | >35 dB | >35 dB |
| Beamwidth | 1.3° | .45° |
| VSWR | 1.3:1 | 1.3:1 |
| Antenna Noise @ 30°EL | 25 K | 21 K |
| Typical G/T (Midband) | | |
| with 50 K LNA | 23.0 dB/K | --- |
| with 70 K LNA | --- | 31.5 dB/K |
| Feed Interface | CPR229 | WR75 |
| Mechanical Specifications | Az-El Head | Kingpost |
| F/D Ratio | .413 | .413 |
| Focal Distance | 61.8 in / 156.9 cm | 61.8 in / 156.9 cm |
| Azimuth Travel | 360° Continuous | 132° Arc (Fixed)
116° (Motorized) |
| Elevation Travel | 0° to 90° | 10° to 90° |
| Polarization Travel | ±90° | ±90° |
| Mast Pipe Size Required | Az-El and Navigator 6.625" O.D. (Mast is not included) | |
| Total Weight | see below right | see below right |
| Crate Dimensions | see below right | see below right |
| Units per 40 ft Container | 39 units | 21 units |
| | Navigator | |
| F/D Ratio | .413 | |
| Focal Distance | 61.8 in / 156.9 cm | |
| Azimuth Travel | 120° Arc | |
| Elevation Travel | 10° to 90° | |
| Polarization Travel | ±90° | |
| Total Weight | see below right | |
| Crate Dimensions | see below right | |
| Units per 40 ft Container | 27 units | |
| Environmental Specifications | |
| Wind Load | Operational | 60 mph |
| | Survival | 125 mph |
| Temperature | Operational | -40° to 140°F
-40° to 60°C |
| | Survival | -60° to 180°F
-51° to 82°C |
| Radial Ice | Survival | 1 in or
1/2 in + 60mph |
| Shock & Vibration | As occurred during on shipment of air, truck or rail. |
